Izod Impact Tester

Izod Impact Tester

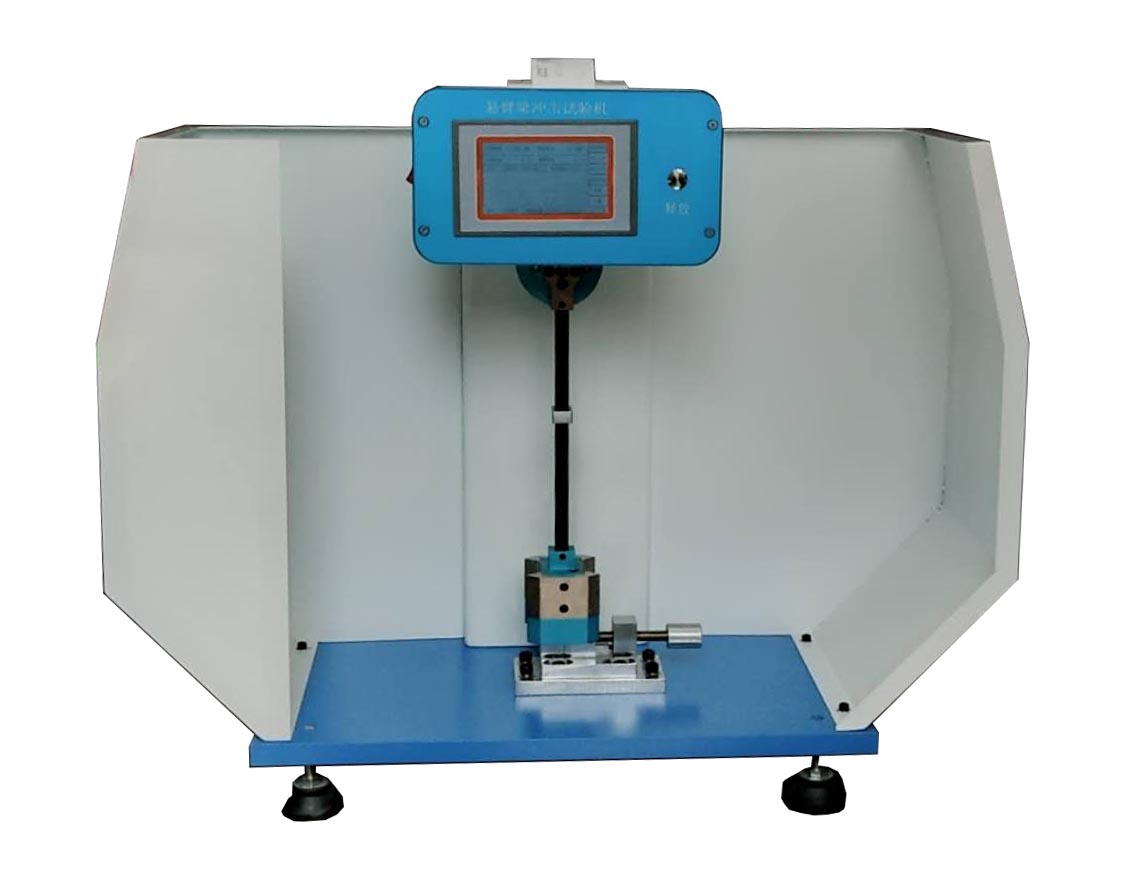

JH-XBL-AIzod Impact Tester is used for testing the impact toughness of plastic,reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone,plastic electrical appliances, insulating materials and other non-metallicmaterials. Is a scientific research unit, colleges and universities,non-metallic material manufacturers for quality inspection of the common equipment.

Standard：

ISO179---92,GB1043 –93 ; GB/T1843—1996; JB/T8761—1998

Parameter：

   1、Impact velocity：3.5m/s

   2、The pendulum energy：1J、2.75J、5.5J

   3、Pendulum Yang Angle：150°

   4、The distance from the center ofthe pendulum to the impact blade：335mm

   5、The distance from the impactblade to the upper plane of the jaw：22mm

   6、The radius of the rounded cornerof the blade：R=0.8mm
