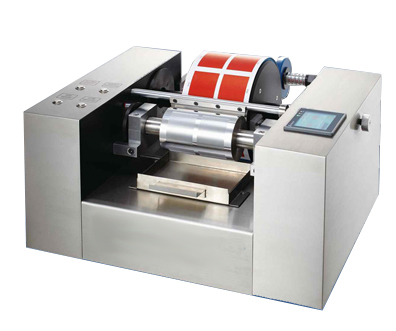

Gravure Ink Printing Proofer
JH –DY-AO Gravure Ink Printing Prooferis suitable for water - based,solvent - based inks, and coatings coating proofing.It is used for making color CARDS and printingsamples. It is a necessary tool to detect the hue, concentration, gloss, VOCdetection, computer color matching proofing or ink contrast.
Principle：With adjustablepressure and wide range of substrate, it is suitable for printing, packagingand printing ink enterprises. It can accurately predict the ink hue. It candisplay the color once in 2 minutes and check the color of the printed materialon the spot with the color strip printed by the color display instrument.Theprinting spot color proofing machine saves a lot of production time. Reducepaper, ink, rags, car wash water, labor, electricity consumption; Improve spotcolor stability.
Parameter：
Inputvoltage: AC220V, 50hz-60hz
Power:0.2kw
Proofingpressure: fine adjustable -1 ~ +3 mm (the distance between the nano-imprintlithography drum and the plate drum is 4mm)
Proofingspeed: 0-130 m/min
Overalldimension: 525X430X280mm
Meshsize:∮80X135mm
Screennumber: standard with a gradient version
Screennumber: standard with a mesh stick (can also be customized according to thenumber of customer needs)
Sampleeffective area (design area): 100x200mm
Paperfeeding material: 3-inch paper tube with diameter less than 250mm
Netweight: 100KG
